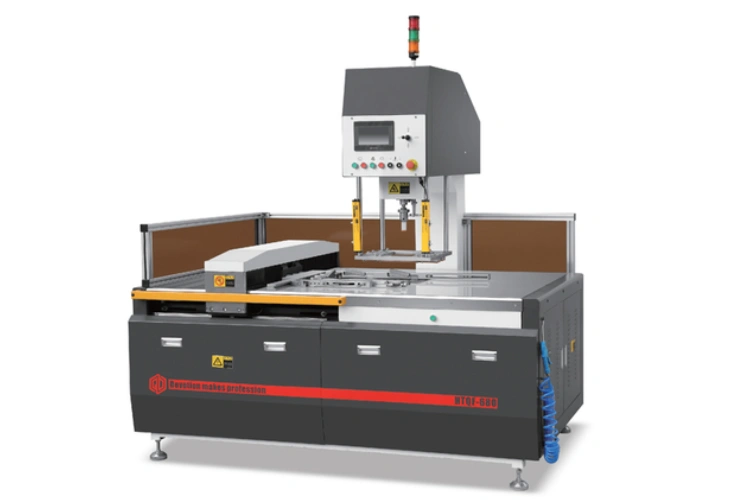

HTQF-680 Automatic blanking machine

HTQF-680 Automatic blanking machine

It is a comprehensive enterprise integrating production, sales and service, focusing on the production of customized automatic blanking machine, automatic drilling machine and other printing equipment.

Send Inquiry Now
Advantage and improvement
  • Compraring to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convinient for operating.
  • Hidden type servo motor and ball screw ensures a precise pile positioning.
  • Adjustable hydraulic system provides adjustable pressure for processing of different
  • Stripping needles (rods) are quick and easy to chang to fit differnent products fromats and patterns.
  • Automatci lubricating system carries out regular lubrication, which greatlty extend the service life of the machine.
  • The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
  • Safety fence at operation side protects the safety of personnel when the machine is running.

Machine technical parametrs

Model HTQF-680 HTQF-680R
Max Sheet Size (X) (mm) 680 1200 mm
Max Sheet Size (Z) (mm) 480 30-180 mm
Min Sheet Size (X) (mm) 400 50-1200 g
Min Sheet Size (Z) (mm) 300 5-50 m/minute
Max Pile Height (mm) 100 4-7 bar
Min Pile Height (mm) 40 1 L/min
Work Table Height (mm) 850 380V
Max Product Size to be Punched Out (mm) 230×230 0.4KW
Min Product Size to be Punched Out (mm) 30×30 200 kg
Stripping Speed (times/min) 15-22
Max Force (bar) 70

Electric configuration

Item Model Brand Brand Origin
DC Power Supply NES-100-24 Schneider French
Relay RXM2AB2BD(DC240V) Schneider French
AC Contactor LC1-0910 Schneider French
Thermal Overload Relay 3UA59(6.3-10A) Schneider French
Button XB2BA11C Schneider French
4-Position Switch XD2PA24CR Schneider French
Knob XB2BD2C Schneider French
Proximity Switch XS212BLNBL2C Schneider French
Servo Motor F-H08AF2 Evta China
Thermal Overload Relay 3UA5240-1K Siemens Germany
Leakage Protection Airswitch (General Power Supply) BKN-D16-3 GL South Korea
Leakage Protection Airswitch (Independent Power Supply) BKN-D6-1 GL South Korea
Touch Screen 10.4'' Weinview Taiwan
Micro-Computerized Controller AFPXHC40-F Panasonic Japan

Machine installation data

Model HTQF-680
Machine Width (mm) 1990
Machine Depth (mm) 1390
Machine Height (mm) 1990
Net Weight (kg) 1500
Air Source (Bar) 4-7
Air Consumption (L/min) 2
Power Supply Voltage 380V
Power Consumption (A) 4.2
Insurance Current (A) 10
Input Power 3hPE

Tool cabinet

Name Quantity
Tape Measure 1
Push Head 1
Slotted Screwdriver 1
Cross Screwdriver 1
Screws and Nuts Many
Sponges Many
Adjustable Wrench 1
Thimble Mould A Set
Pressure Plate 10
Inner Hexagon Spanner A Set
Open End Wrench 1
